STA 4.0 Setup & Data Guide: From Unboxing to Your First Swing Insight
STA 4.0 Setup & Data Guide:
From Unboxing to Your
First Swing Insight
Installation takes 3 minutes. Understanding your data takes this guide. Let's make sure you get both right — so your analyzer actually improves your game.
What's in the Box
Your STA 4.0 package includes everything you need to start measuring your swing immediately:
- ✅ STA 4.0 Smart Tennis Sensor (Koospur)
- ✅ Silicon case for racket attachment (Way 1)
- ✅ 3M adhesive tape for direct attachment (Way 2)
- ✅ USB charging cable
- ✅ Quick start guide
App: Search "Smart Tennis" on App Store or Google Play, or scan the QR code in your manual.
"Most players use 10% of what their swing analyzer can tell them. This guide unlocks the other 90%."
— Aura Tide Equipment ScienceThe STA 4.0 offers two attachment methods. Choose based on your racket and how often you switch between rackets:

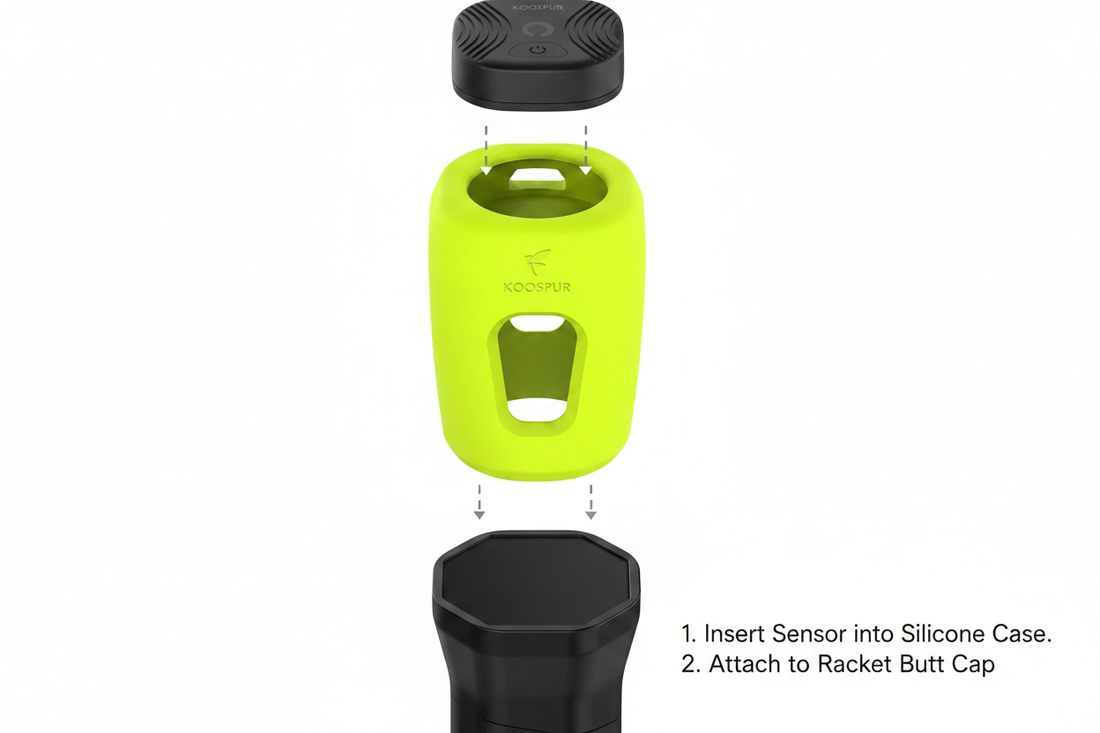

Way 1: Silicon Case
Slide the sensor into the silicon case, then clip the case onto the bottom of your racket handle. No adhesive required — fully removable and transferable between rackets.
Way 2: 3M Adhesive Tape
Clean the racket handle surface, peel the 3M tape backing, and press the sensor firmly onto the handle. Hold for 30 seconds. Allow 24 hours for full adhesion before heavy use.
Power On
Short press the power button for 1 second. The LED indicator will flash green 3 times to confirm the sensor is on. If no response, charge the sensor for 30 minutes first.
Download the Smart Tennis App
Search "Smart Tennis" on the App Store (iOS) or Google Play (Android). The app is free. Create an account — your data is stored to your personal profile and tracked chronologically.
Pair the Sensor
Open the Smart Tennis app → tap the sensor icon → select your device from the list → tap "Connect". The LED will flash in 4-second intervals when connected successfully.
Choose Your Mode
Memory Mode (default): Sensor records all data internally. Sync to the app after your session by connecting via Bluetooth and pulling down to refresh. Best for uninterrupted play.
Real-Time Mode: Data streams live to your phone during play. Requires Bluetooth connection throughout. Best for focused training sessions with immediate feedback.
Your sensor communicates its status through LED patterns. Here's what each pattern means:
| LED Pattern | Status | What to Do |
|---|---|---|
| Flashes 3x on press | Powering on — normal | Nothing — sensor is starting up |
| On when long-pressed, off after 2s | Powering off — normal | Nothing — sensor is shutting down |
| Flashes every 4 seconds | Unconnected — Memory Mode active | Recording data internally. Sync after session. |
| Flashes every 4s (2x intervals) | Connected — Real-Time Mode active | Data streaming live to your phone |
| Stays on continuously | Firmware upgrading | Do not power off. Wait for completion. |
| Quick flash every 4 seconds | Low battery | Charge soon — data may not save if battery dies mid-session |
| Breathing (slow pulse) | Charging | Normal — leave connected until full |
| Stays on solid | Fully charged | Ready to use |
This is where most players get lost — and where the real value of your analyzer lives. Here's what each metric actually means, what a good score looks like, and what to do if yours needs improvement:
Swing Speed (Racket Head Speed)
How fast your racket head is moving at the moment of contact. The primary driver of ball speed and power. Measured in mph or km/h.
Sweet Spot Contact Rate
The percentage of shots where you make contact in the optimal zone of the racket face. The single most reliable predictor of shot consistency and quality.
Swing Arc / Path
The 3D trajectory your racket travels through the hitting zone. Reveals whether your swing is flat, looping upward (topspin), or cutting downward (slice).
Swing Speed Variance
How much your swing speed varies across a session. Low variance = high consistency. High variance = your mechanics are changing shot to shot, often due to fatigue or tension.
Shot Count by Type
Total shots broken down by forehand, backhand, serve, and volley. Reveals your shot distribution — and whether your practice matches your match patterns.
Session Trend (Week over Week)
Your most important long-term metric. Compares your average swing speed and sweet spot rate across multiple sessions. This is where real improvement becomes visible.
Use this table to contextualize your data against typical player profiles at each level:
| Player Level | Avg Swing Speed | Sweet Spot Rate | Speed Variance | Sessions to See Improvement |
|---|---|---|---|---|
| Beginner (0–2 yrs) | 45–60 mph | 40–60% | High (15%+) | 4–6 weeks |
| Recreational (2–5 yrs) | 60–75 mph | 60–75% | Medium (10–15%) | 3–4 weeks |
| Club Competitive (5–10 yrs) | 75–85 mph | 75–85% | Low (8–10%) | 2–3 weeks |
| Advanced / Tournament | 85–95+ mph | 85–92% | Very Low (<8%) | 1–2 weeks |
| WTA / ATP Pro | 95–120+ mph | 90–95%+ | <5% | Continuous |
Don't just collect data — act on it. Here's a structured 4-week plan to get maximum value from your STA 4.0 in your first month:
Establish Your Baseline
- Record 3 sessions without changing anything
- Note your average swing speed
- Note your sweet spot rate
- Note your speed variance
- This is your starting benchmark
Identify Your #1 Gap
- Compare your data to the benchmark table
- Pick ONE metric to focus on
- Sweet spot rate <65%? Focus on contact
- Variance >15%? Focus on consistency
- Speed below benchmark? Focus on rotation
Drill, Measure, Repeat
- Run targeted drills for your #1 gap
- Record data every session
- Compare Week 3–4 to Week 1 baseline
- Look for 5–10% improvement in target metric
- Then pick your next gap to close
How to Update Firmware
In the Smart Tennis app, go to Settings → Firmware Update. Ensure battery is above 60% before starting. The LED will stay on solid during the update — do not power off. If an update fails, use Settings → Restore to Factory Settings to reset, then retry.
Battery & Storage
Charge via the included USB cable. The LED breathes slowly while charging and stays solid green when full. For long-term storage, charge to 50–60% before storing. Avoid leaving the sensor fully discharged for extended periods.
